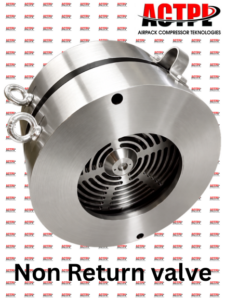

A Non Return Valve (NRV), also known as a check valve or one-way valve, allows fluid or gas to flow in one direction and prevents reverse flow automatically. NRVs play a critical role in protecting compressors, pumps, pipelines, and process equipment from backflow-related damage.
In industries such as oil & gas, power generation, chemical processing, water treatment, and compressed air systems, NRVs help maintain system efficiency, improve safety, and reduce maintenance costs.
What Is an NRV (Non Return Valve)?
A Non Return Valve is a self-operating valve that opens when fluid flows in the intended direction and automatically closes when the flow stops or reverses. Unlike manual valves, NRVs do not require external control or actuation.
Key Functions of an NRV
- Prevent reverse flow
- Protect compressors and pumps
- Maintain system pressure
- Reduce contamination risks
- Improve operational safety
- Prevent water hammer and equipment damage
How Does a Non Return Valve Work?
The operation of an NRV is based on pressure differences.
Forward Flow Condition
When the inlet pressure becomes higher than the outlet pressure, the valve disc, plate, ball, or piston moves away from its seat, allowing fluid to pass through the valve.
Reverse Flow Condition
If the flow stops or the downstream pressure becomes greater than the upstream pressure, the valve automatically closes. This action prevents fluid or gas from flowing backward into the system.
Main Components of a Non Return Valve.
Valve Body
Provides the outer structure and houses all internal components.
Disc or Plate
Moves to allow or block fluid flow.
Seat
Creates a tight seal when the valve closes.
Spring (For Spring-Loaded Designs)
Helps the valve close quickly and reduces valve slam.
Guide Assembly
Ensures smooth movement of the internal components.
Types of Non Return Valves.
Different applications require different NRV designs.
1. Swing Check Valve
A hinged disc swings open during forward flow and closes when the flow reverses.
Advantages
- Low pressure drop
- Suitable for large pipelines
- Simple design
Applications
- Water systems
- Pump discharge lines
- Industrial pipelines
2. Lift Check Valve
Uses a disc that lifts vertically when fluid pressure increases.
Advantages
- Good sealing performance
- Suitable for high-pressure systems
Applications
- Steam lines
- Process industries
- Chemical plants
Ball Check Valve
A ball moves inside the valve body to permit or stop flow.
Advantages
- Compact design
- Suitable for contaminated fluids
Applications
- Wastewater systems
- Slurry applications
4. Dual Plate Check Valve
Features two spring-loaded plates that open and close rapidly.
Advantages
- Lightweight construction
- Fast closing action
- Reduced water hammer
Applications
- Oil & gas facilities
- Power plants
- Compressor systems
5. Spring-Loaded NRV
Uses a spring mechanism for quick and reliable valve closure.
Advantages
- Non-slam operation
- Enhanced sealing
- Extended service life
Applications
- High-speed flow systems
- Compressor discharge lines
- Process piping
Applications of NRV Valves
NRVs are widely used across numerous industries.
Industrial Applications
- Reciprocating compressors
- Air compressor systems
- Gas compressor stations
- Chemical processing plants
- Oil and gas facilities
- Power generation plants
- Water treatment systems
- Pump discharge pipelines
Advantages of Non Return Valves.
Reliable Backflow Prevention
Protects critical equipment from reverse flow damage.
Automatic Operation
Requires no manual intervention or external power source.
Increased Equipment Life
Reduces wear on pumps, compressors, and piping systems.
Improved Safety
Prevents process contamination and pressure-related hazards.
Low Maintenance
Simple construction results in fewer maintenance requirements.
Energy Efficiency
Maintains flow direction while minimizing pressure losses.
Why Choose Airpack Compressor for NRV Solutions?
Airpack Compressor provides high-quality valve components and engineering solutions designed for demanding industrial applications.
Benefits of Choosing Airpack Compressor
- Precision-engineered valve components
- Premium-grade materials
- Reliable sealing performance
- Customized valve solutions
- Fast technical support
- Competitive pricing
- Global supply capability
Conclusion
The NRV or Non Return Valve is crucial for preventing the reverse flow of fluid in compressors, pumps, and other industrial piping networks. Through one-way movement of the fluid and the automatic stopping of the reverse flow of the fluid, the NRV helps to increase efficiency, safety, and the lifespan of the equipment. Choosing the right kind of valve with regards to type, materials, and configuration will ensure that your NRV will work reliably in your industrial setting.
